Cantilever Racking - Heavy Duty
Heavy Duty Cantilever Racking for the storage of longer items that are not suitable to store on standard pallet racking set-ups.
Builders merchants, timber merchants and other trades and manufacturers with the need to store lengthy products and awkward sized goods will benefit from using this exceptionally strong Cantilever Racking system.
Heavy duty, industrial cantilever racking to store all types of bars, pipes, sheets, panels, strips, even boats and cars! Sturdy steel columns and arms made of hot-rolled IPE profiles help sustain heavy bulky loads, stored on cantilevered arms.
Cantilever Racking with a modular design enable runs of any length and adjustable arms mean you can vary the positions to suit your individual storage needs. Simple to add to and extend when you need to increase cantilever rack storage space.
K6000 cantilever racking is for heavy duty cantilever rack loads
Load capacity per arm of 575kgs - total run capacity in excess of 11,000kgs
Single and double-sided versions - made from IPE180 hot rolled sections

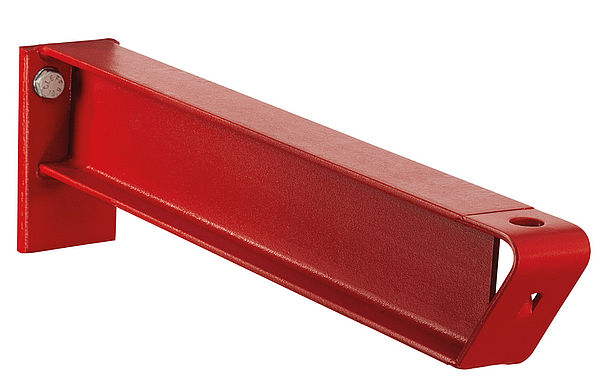

Bolted cantilever arms can be easily adjusted for optimum flexibility in increments of 100mm
K6000 heavy-duty Cantilever Racking runs are available to purchase here as either 3 bay single sided runs or 3 bay (x2) double sided runs.

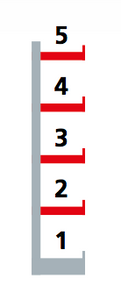

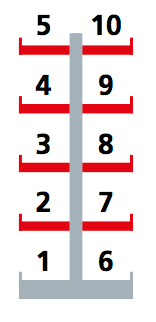

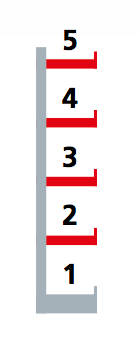

Single sided or double sided heavy duty cantilever racks all have 3 bays that are 1500mm wide each, centre to centre (4500mm overall length) with 4 single or double sided vertical columns with 5 storage levels including the base level.
Both generously sized single and double sided options are 3000mm high
Each of the 3 bays is 1500mm wide (each bay width) x 1000mm deep or 2000mm deep on the double-sided versions
Overall run lengths are 4500mm L on both single or double sided versions.
Unique choice of cantilevered arm colours.
Rack Paint Finish: Silver Grey RAL7001 Vertical Columns, with Fire Red RAL3000, Reseda Green RAL6011 or Gentian Blue RAL5010 Cantilever storage arms.
Complete galvanised cantilever racks for external use can also be supplied.

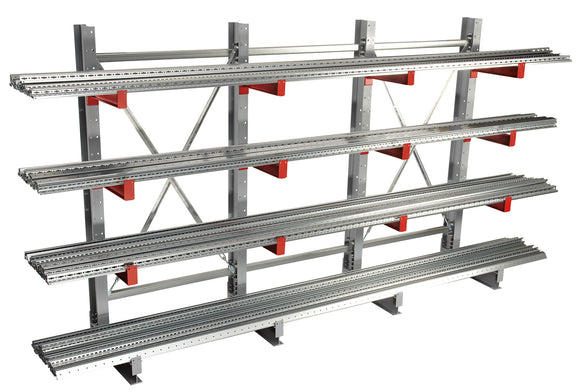

For medium duty cantilever racking - please check out the K3000 series via this link
Quakity Cantilever Racking Made in Germany.
This is only a small selection of commonly used cantilever rack sizes, we can also offer many other sizes configurations and loadings to suit most heavy duty cantilever racking needs.
For more information or quotes on projects and multiple bay requirements, please send your enquiry direct to us by email for project based offers.
Please note that our heavy duty Cantilever systems are made to order and may be subject to 5-6 weeks lead time.
